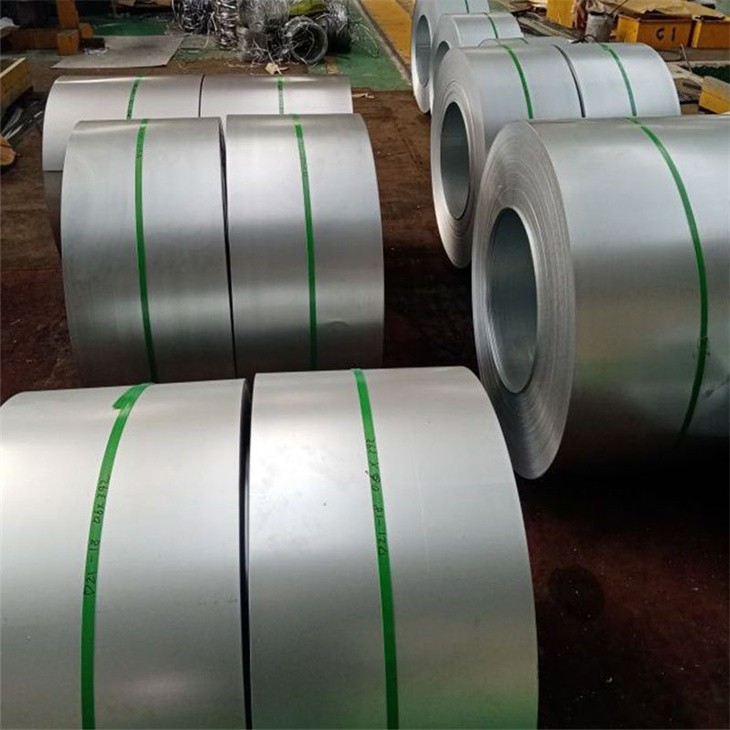

50H310 Non Grain Oriented Electrical Steel

50H310 Non Grain Oriented Electrical steel

50H310 Non Grain Oriented Electrical steel is often used to manufacture the core of power transformers due to its high magnetic permeability and low iron loss.

50H310 silicon steel Specifications

Thickness	Assumed Density	Core Loss(W/Kg)				Core Loss(W/Lb)				Induction (800A/m)	Lamination Factor (Minimum)	Remark
		50Hz		60Hz		50Hz		60Hz
mm	Kg/dm3	1.0T	1.5T	1.0T	1.5T	1.0T	1.5T	1.0T	1.5T
0.50	7.65	1.25	3.10	1.60	3.95	0.57	1.41	0.73	1.79	1.62	96.0	-

50H310 silicon steel Typical Electrical and Magnetic Properties

Assumed Density	Resistivity	Core Loss								Induction T
		W／Kg				W／LB
Kg/dm3	Ohm*Meter (X10e-8)	50Hz		60Hz		50Hz		60Hz
		1.0T	1.5T	1.0T	1.5T	1.0T	1.5T	1.0T	1.5T	2,500A/m	5,000A/m
7.65	54	1.20	2.70	1.55	3.48	0.54	1.23	0.70	1.58	1.58	1.67

50H310 silicon steel Typical Mechanical Properties and Lamination Factors

Tensiile Strength				Yield Point				Elongation %		Hardness Hv(1)	Bending Test Value		Lamination Factor %
N/mm2		lb/in2(X10e3)		N/mm2		lb/in2(X10e3)
L	C	L	C	L	C	L	C	L	C		L	C
539	549	78	80	412	431	60	63	23	26	192	13	12	98.5
