SS Tubings are finished in accordance with customer needs regarding dimensional and wall thickness specifications as well as heat treatment for more demanding applications. In general a SS seamless Tubing is manufactured in sizes from 1/8” to 24” according to current standards API, ASTM, and ASME. If required for special projects we can also supply seamless Tubings for large diameter sizes.

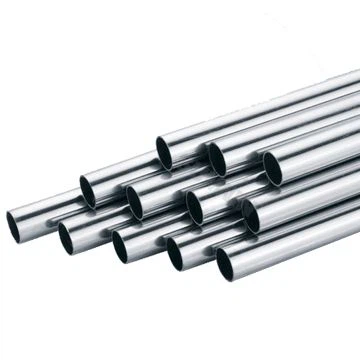

STAINLESS STEEL TUBING

STAINLESS STEEL TUBING SPECIFICATION

STAINLESS STEEL TUBING, SS SEAMLESS TUBING SPECIFICATION
Specification	ASTM A213, ASTM A249, ASTM A268, ASTM A269, ASTM A270 & Its equivalent ASME, DIN & EN Standard.
Grades	304, 304L, 304H, 304LN, 309S, 310S, 316, 316L, 316H, 316Ti, 317, 317L, 321, 321H, 347, 347H, 410,446
Type	Seamless / Welded
Diameter Size	1/4” OD, NB to 3” OD, NB sizes
Thickness	1mm to 12mm, SCH 5/5S, 10/10S, 20/20S, 40/40S, 80/80S, 120/120S, 160/160S as per ANSI B36.19/36.10
Length	Up to 6 meters, custom cut lengths
Ends	No.1 Pickled Finish, No.4 finish, BA Finish, Electropolished Seamless Tubings
Delivery Conditions	As Rolled, Formed, Stress Relieved, Annealed, Hardened, Tempered, Cold Draw
Coating	Electropolish, Mechanical Polish, Satin Finish, Passivated
Testing	Product Analysis, Transverse Tension Test, Flattening Test, Etching Test, Radiographic Examination, Stabilizing Heat Treatment, Intergranular Corrosion Test, Weld Decay Test, Magnetic Particle Detection, Grain Size Test, NACE 0175, Dual Grade, PWHT (POST WELD HEAT TREATMENT), Flare Test, Bend Test, Hardness Test, Tensile Test etc
Dimension	All Stainless Steel Tubings are Manufactured and Inspected / Tested to the Relevant standards including ASTM and ASME
Value Added Services	Draw / Expansion / Machining / Sand Blasting / Shot Blasting / Heat Treatment
Packaging	Loose / Bundle / Wooden Pallet / Wooden Box / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector
Material Test Certificate	Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS ETC
Delivery	By Road – Truck / Train, By Sea – Break-bulk Conventional Vessel / FCL (Full Container Load) / LCL (Less Container Load) / 20 Feet Container / 30 Feet Container / 35 Feet Container / High Cube Container / Open Top Container, By Air – Freighter Civil Passenger and Cargo Planes

AVAILABLE STOCK OF SS DECORATIVE TUBE

HSN CODE	PRODUCT DESCRIPTION
7306	Other Pipes, Tubings and hollow profiles (for example, open seam or welded, riveted or similarly closed), of iron or steel
73064000	Other welded of circular cross-section of stainless steel
7304L	SS 304L Tubings, SS 304L Seamless Tubings and hollow profiles, SS 304L seamless, of iron (other than cast iron) or steel
7304L11	Of stainless steel:
7304L1110	Tubings and Tubings
7306110	Line Tubing of a kind used for oil or gas Tubinglines:
73061100	Welded of SS

STAINLESS STEEL TUBING CHEMICAL COMPOSITION

The below table shows the chemical composition of the used for Stainless Steel Seamless Tubing:

GRADES	UNS	C	Mn	P	S	Si	Cr	Ni	Mo	Ti	Nb	N
TP304	S30400	0.08	2	0.045	0.03	1	18.0-20.0	8.0-11.0
TP304L	S30403	0.035	2	0.045	0.03	1	18.0-20.0	8.0-13.0
TP316	S3160	0.08	2	0.045	0.03	1	16.0-18.0	11.0-14.0	2.0-3.0
TP316L	S31603	0.035	2	0.045	0.03	1	16.0-18.0	10.0-14.0	2.0-3.0
